Standard End Fastener, M8

Standard End Fastener, M8

Part no. 3891

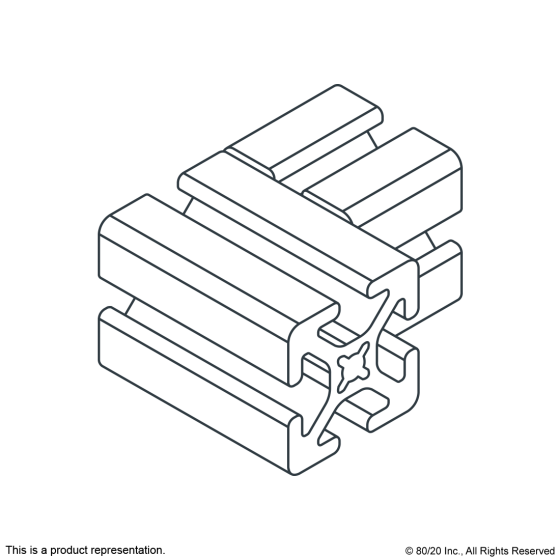

The standard end fastener assembly is comprised of a button head socket cap screw and wing clip. The end fastener provides a fixed, 90 degree, moderate-strength connection that is completely hidden. The winged tabs of the clip prevent the mating profile from rotating. This connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head. Additional Information: Wing clips are available separately (without the button head socket cap screw) for instances where you want to create your own custom assembly.

SKU: 3891 Categories: , ,
Series15 Series
TypeAssembly
MaterialSteel
ColorBright

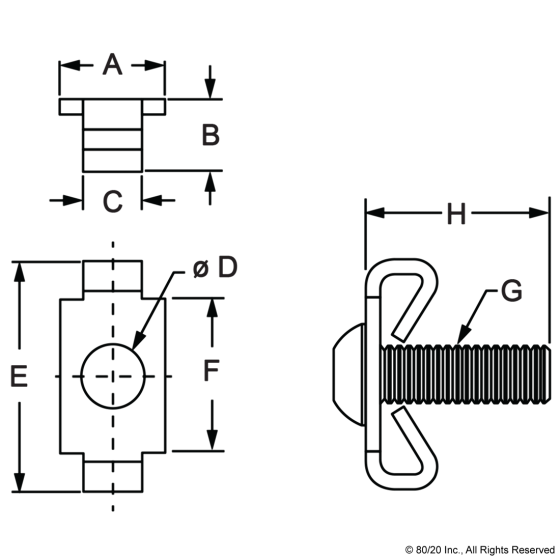

A.625″
B.450″
C.300″
D.340″
E1.300″
F1.000″
GM8
H.984″
Weight0.0450

3891_dimensional
