Standard End Fastener, M6

Standard End Fastener, M6

Part no. 25-3895

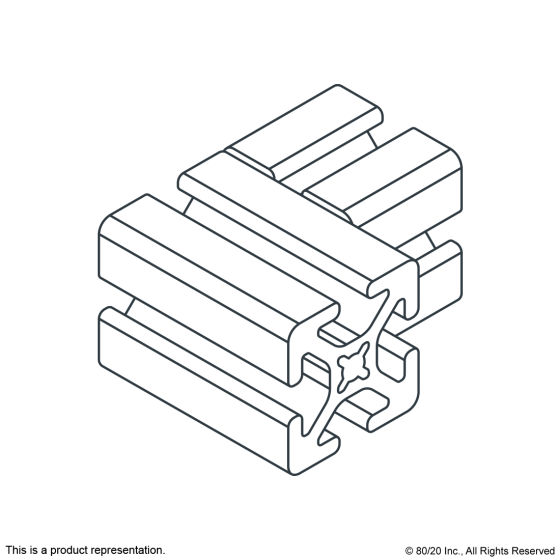

The standard end fastener assembly is comprised of a button head socket cap screw and wing clip. The end fastener provides a fixed, 90 degree, moderate-strength connection that is completely hidden. The winged tabs of the clip prevent the mating profile from rotating. This connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head. Additional Information: Wing clips are available separately (without the button head socket cap screw) for instances where you want to create your own custom assembly.

SKU: 25-3895 Categories: , ,
Series25 Series
TypeAssembly
MaterialSteel
ColorBright
A10.94mm
B7.44mm
C6.09mm
D6.52mm
E23.79mm
F15.87mm
GM6
H16.00mm
Weight0.0180

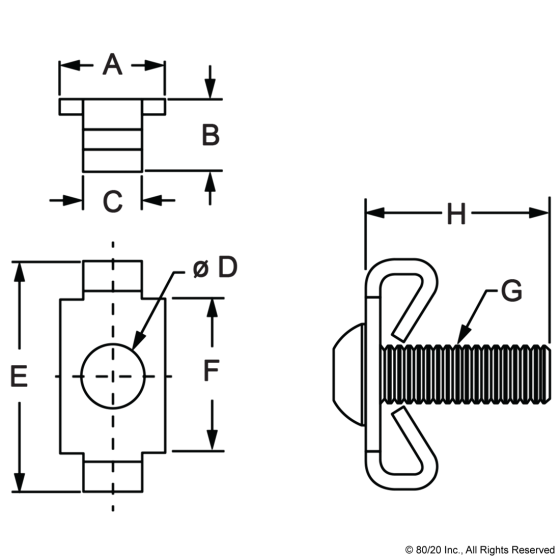

25-3895_dimensional
