Part No: 40-3389
Single Tab End Fastener, M8

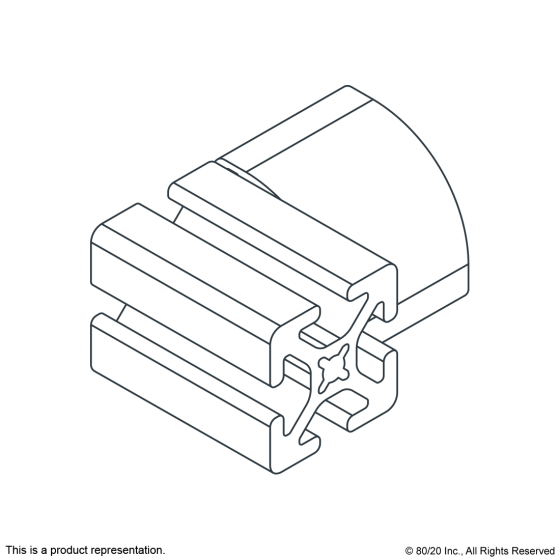

The single tab end fastener assembly is comprised of a button head socket cap screw and a single tab wing clip. The single tab end fastener provides a fixed, 90 degree, moderate-strength connection that is completely hidden. The single winged tab is used for radius and angled profiles; the winged tab prevents the mating profile from rotating while the straight end is flush with the mounting profile. This connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head. Additional Information: Wing clips are available separately (without the button head socket cap screw) for instances where you want to create your own custom assembly.

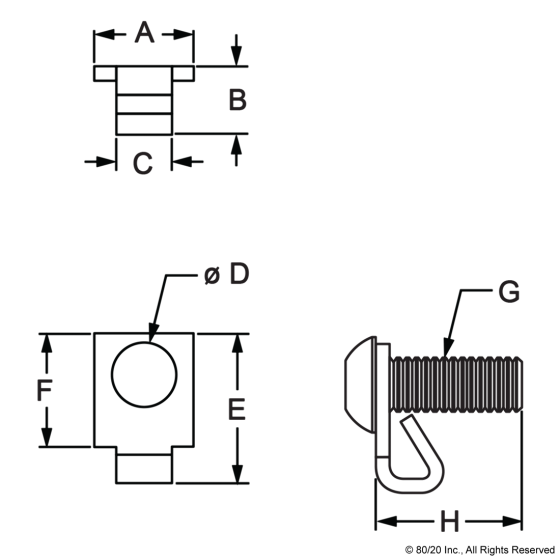

| Series | 40 Series |
| Type | Assembly |
| Material | Steel |
| Color | Bright |
| A | 15.87mm |
| B | 11.43mm |
| C | 7.62mm |
| D | 8.99mm |
| E | 23.26mm |
| F | 19.45mm |
| G | M8 |
| H | 25.00mm |
| Weight | 0.0370 |
