Hidden Corner Connector: Inside-Inside

Hidden Corner Connector: Inside-Inside

Part no. 33490

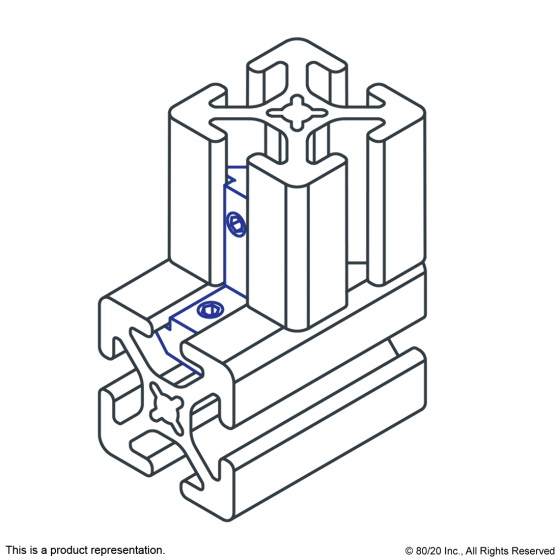

The hidden corner connector provides a 90 degree hidden corner connection. The corner connector comes with set screws that allow for quick, easy connections. This connection can be between the inside of two profiles or between the inside of one profile and the outside of the second profile. The hidden corner connector does not require any machining, making it a cost-effective fastening option. The suggested tool to tighten the included hardware is a 4mm hex wrench.

SKU: 33490 Categories: , ,
Series45 Series
TypeInside-Inside
MaterialZinc
A32.00mm
B28.00mm
C10.00mm
D9.80mm
E19.00mm
F8.70mm
G3.80mm
H25.00mm
J38.00mm
K0°
L3.80mm
M8.70mm
NM8 X 12
Weight0.0980

33490_dimensional
