25 Series Upper Door Slide Track

25 Series Upper Door Slide Track

Part no. 25-2211

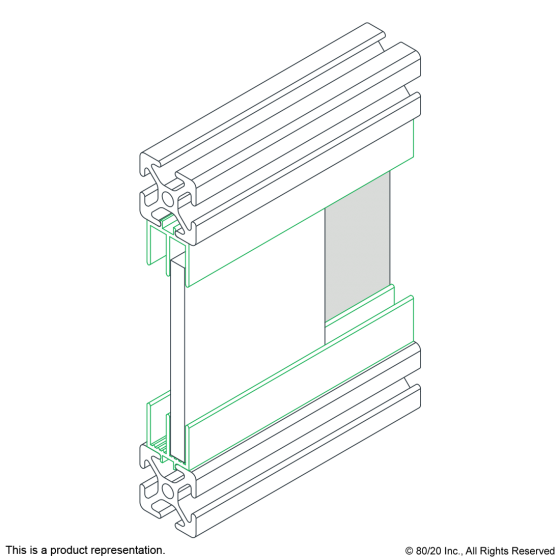

The upper door slide tracks snap into a T-slot with no required hardware. This track is typically used with the lower door slide track to allow panels to be inserted after the frame is assembled. The upper door slide track is 145” (3.683M) and can be cut to length with a standard machining service.

SKU: 25-2211 Categories: ,
Series25 Series
MaterialAluminum
Grade6105-T5
ProcessExtruded
FinishAnodize
ColorClear

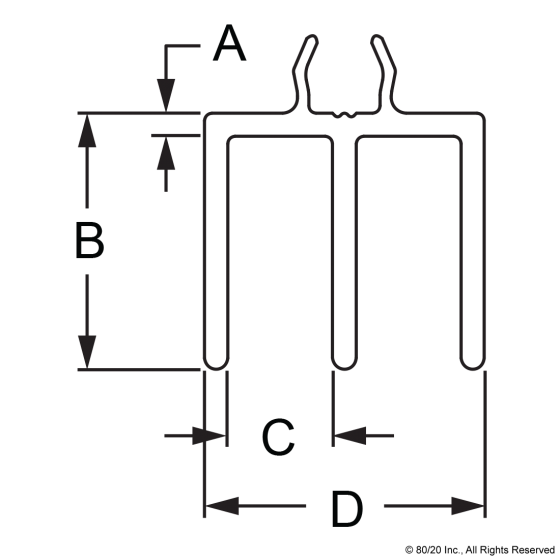

A1.57mm
B17.48mm
C7.14mm
D19.05mm
Lengthper millimeter
Weight0.0160

25-2211_dimensional_2
