15 Series M8 Standard Anchor Fastener Assembly

15 Series M8 Standard Anchor Fastener Assembly

Part no. 3897

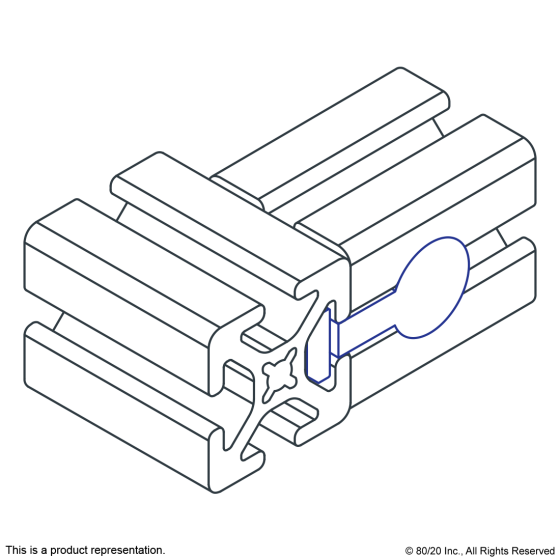

The standard anchor fastener assembly is comprised of a socket head cap screw, cam, and T-nut. It is one of the strongest internal fastening methods, offering a long-lasting connection. The anchor fastener provides infinite positioning along the mating profile’s T-slot, allowing a large degree of adjustability. The anchor fastener provides 90 degree, flush, vibration resistant connections, especially convenient where space restrictions apply. This connection method requires a counterbore machining service on the mounting profile. Additional Information: Cams are available separately (without the socket head cap screw and T-nut) for instances where you want to create your own custom assembly.

Series15 Series
T-NutStandard Slide-in
MaterialZinc
Cam ColorBright
A1.383″
B.309″
C.625″
D.250″
E.810″
F.700″
G.625″
HM8 X 32mm SHCS
Weight0.1050

3897_dimensional
