15 Series Bright Anchor Fastener Cam Only
15 Series Bright Anchor Fastener Cam Only

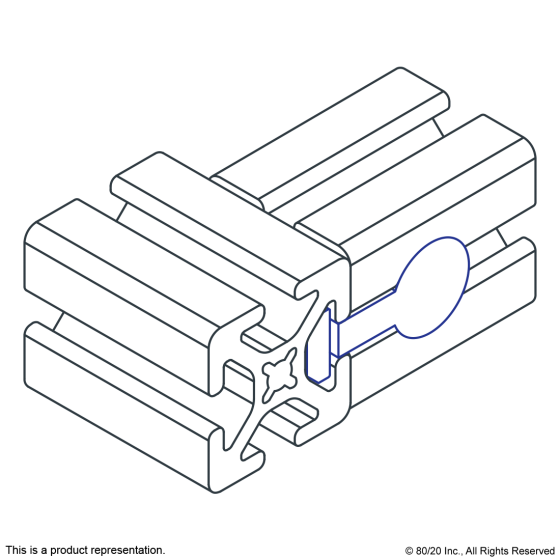

The anchor fastener cam is commonly used with a socket head cap screw and T-nut to form custom anchor fastener assemblies. An anchor fastener connection method requires a counterbore machining service on the mounting profile.
| Series | 15 Series |
| Material | Zinc |
| Cam Color | Bright |

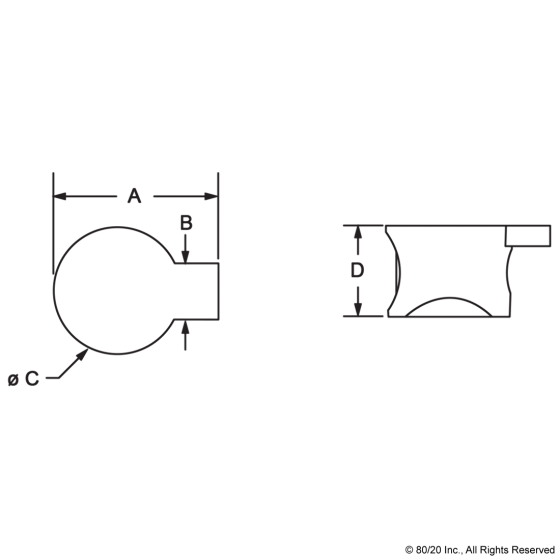

| A | 1.383” |
| B | .309” |
| C | .810” |
| D | .625” |
| Weight | 0.0450 |
