15 & 40 Series 4 Hole – Inside Corner Bracket with Single Support

15 & 40 Series 4 Hole – Inside Corner Bracket with Single Support

Part no. 14080

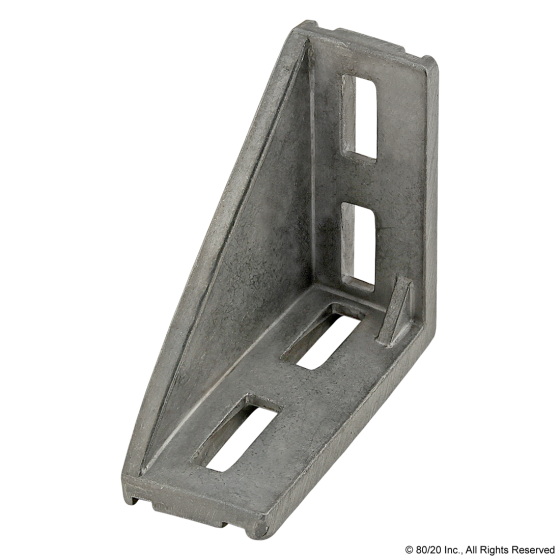

The 4 hole – inside corner bracket with single support is an external, die-cast fastening method that creates a 90 degree connection. Each side of the bracket has two holes stacked one on top of the other while the single support provides additional strength. The slotted mounting holes allow for greater adjustability between the connecting profiles. Brackets with a slot tab on the support help to line up the profile with the bracket and prevent rotation. It requires no machining services and can provide infinite positioning along the profile T-slot. The suggested mounting hardware can be found on the “Suggested Hardware” tab.

SKU: 14080 Categories: ,
Series15 Series, 40 Series
MaterialAluminum
FinishNatural
A76.00mm
B76.00mm
Cn/a
D23.50mm
E19.00mm
F8.50mm
G23.00mm
H9.00mm
J34.50mm
K38.00mm
Ln/a
Weight0.251200

14080_dimensional
