Part No: 3090
10 Series 10-32 Short Double Anchor Assembly

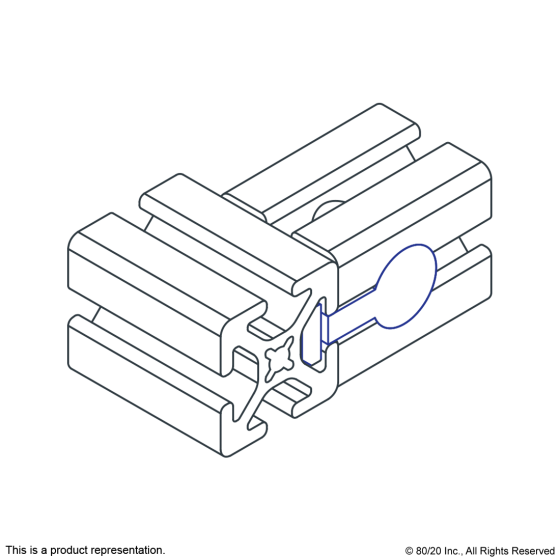

The double anchor fastener assembly is comprised of two socket head cap screws, two cams, and a double T-nut. This design doubles the contact between the fastener and mating profile, making an extremely strong connection. The fastener provides infinite positioning along the mating profile’s T-slot, allowing a large degree of adjustability. The double anchor fastener provides 90 degree, flush, vibration resistant connections, especially convenient where space restrictions apply and is used for profiles with open T -slots opposite each other. 80/20 recommends the double anchor fastener for non-column loaded supports to add extra strength. This connection method requires a counterbore machining service on the mounting profile. Additional Information: Cams are available separately for instances where you want to create your own custom assembly.
| Series | 10 Series |
| Material | Zinc |
| Cam Color | Bright |
| Color | No |

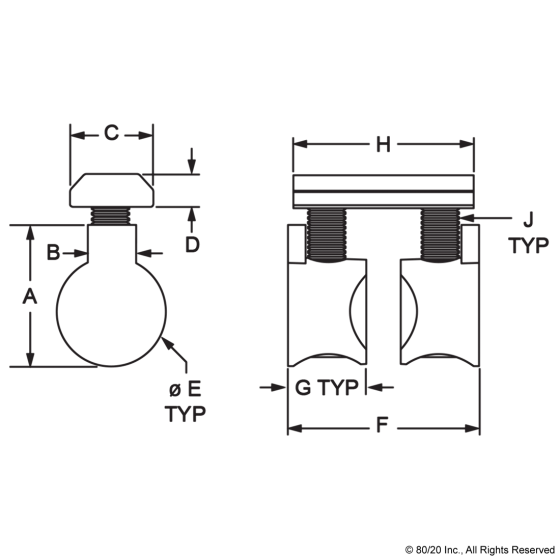

| A | .730″ |
| B | .245″ |
| C | .431” |
| D | .171″ |
| E | .562” |
| F | .961″ |
| G | .406″ |
| H | .936″ |
| J | 10-32 X .75” SHCS |
| Weight | 0.0610 |
