M8 Self-Aligning Roll-in T-Nut

M8 Self-Aligning Roll-in T-Nut

Part no. 13062

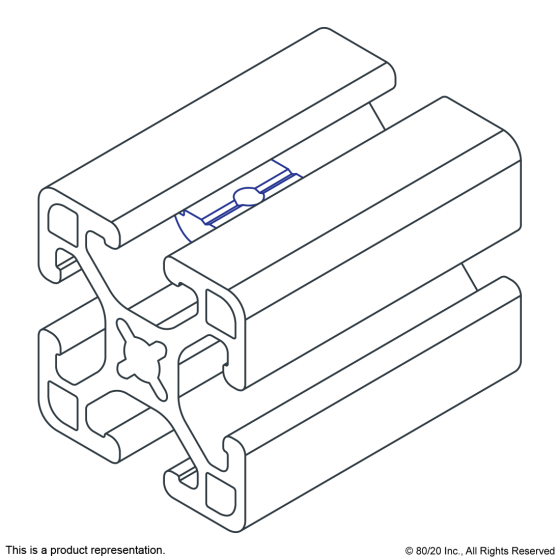

The self-aligning roll-in T-nut is a fastening option that loads either from the profile ends or side, which is helpful for applications where the ends are inaccessible. The projection on the T-nut aligns it in the T-slot for easy assembly. This fastening option provides infinite positioning along the T-slot and is available with options in size and thread.

SKU: 13062 Categories: , ,
Series45 Series
MaterialSteel
GradeQ235
FinishZinc
ColorBright
A20.00mm
B10.00mm
C15.00mm
D (Thread)M8 X 1.25
E6.00mm
F2.00mm
G9.80mm
Weight0.0180

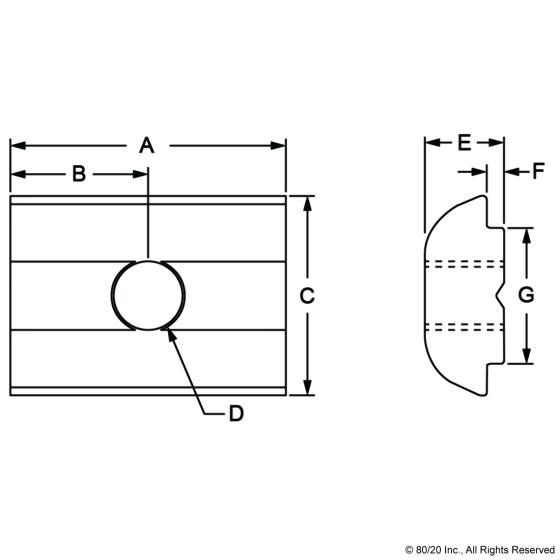

13062_dimensional
