45mm X 90mm T-Slotted Profile – Six Open T-Slots

45mm X 90mm T-Slotted Profile – Six Open T-Slots

Part no. 45-4590

45-4590 is a 45mm x 90mm metric 45 series rectangular T-slot profile with six open T-slots, two on each 90mm face and one on each 45mm face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 45-4590 profile is compatible with 45 series fasteners. This profile lends itself to work spaces, machine guards, and displays. The six open T-slots enable access from any direction and are useful for mounting accessories.

Unit

SKU: 45-4590 Categories: ,
Series45 Series
MaterialAluminum
Grade6105-T5
FinishAnodize
ColorClear
Drop LockN/A
Moment of Inertia – IX104.2072 cm⁴
Moment of Inertia – IY25.2637 cm⁴
Surface Area12.615 Sq cm
Yield Strength241.1 N/ Sq. mm
Modulus of Elasticity70,326.5 N/Sq. mm
Weight lbs0.1906 per inch
Weight0.1906

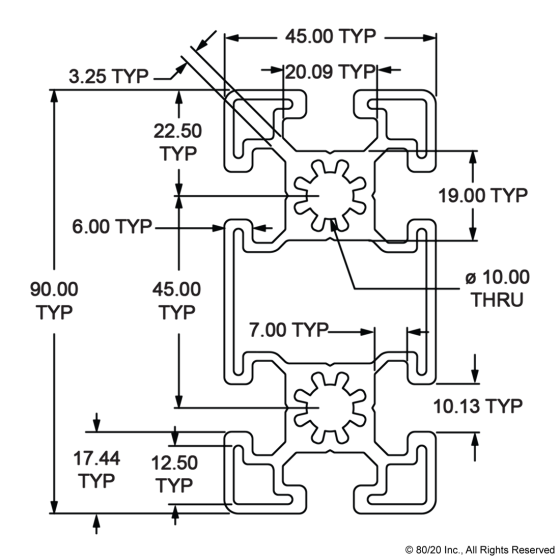

45-4590_dimensional
