Part No: 30-3004

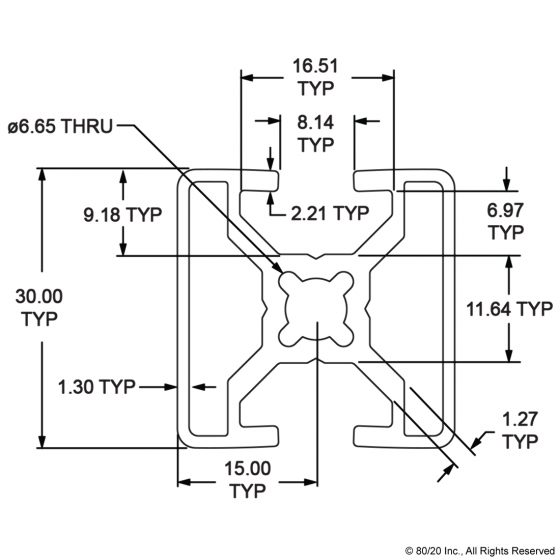

30mm X 30mm T-Slotted Profile – Two Opposite Open T-Slots
30-3004 is a 30mm x 30mm metric 30 series square T-slot profile with two opposite open T-slots, one on two 30mm faces. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 30-3004 profile is compatible with 30 series fasteners. The placement of the T-slots allow support structures or panels to be easily placed into them while maintaining a continuous surface, lending itself to projects such as guarding, furniture or displays.
Additional information
| Series | 30 Series |
| Material | Aluminum |
| Grade | 6105-T5 |
| Finish | Anodize |
| Color | Clear |
| Drop Lock | 2° |
| Moment of Inertia – IX | 2.6212 cm⁴ |
| Moment of Inertia – IY | 2.5234 cm⁴ |
| Surface Area | 2.986 Sq cm |
| Yield Strength | 241.1 N / Sq mm |
| Modulus of Elasticity | 70,326.5 N / Sq mm |
| Weight lbs | 0.0448 per inch |
| Weight | 0.0448 |
30-3004 is a 30mm x 30mm metric 30 series square T-slot profile with two opposite open T-slots, one on two 30mm faces. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 30-3004 profile is compatible with 30 series fasteners. The placement of the T-slots allow support structures or panels to be easily placed into them while maintaining a continuous surface, lending itself to projects such as guarding, furniture or displays.
