30mm X 30mm T-Slotted Profile – Two Adjacent Open T-Slots

30mm X 30mm T-Slotted Profile – Two Adjacent Open T-Slots

Part no. 30-3002

30-3002 is a 30mm x 30mm metric 30 series square T-slot profile with two adjacent open T-slots, one on two 30mm faces. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 30-3002 profile is compatible with 30 series fasteners. The two closed faces on this profile provide a clean, aesthetic look while also having the capability to mount additional profiles, parts and accessories. It lends itself to furniture, displays, desks, trade show booths, or retail kiosks.

Unit

SKU: 30-3002 Categories: ,
Series30 Series
MaterialAluminum
Grade6105-T5
FinishAnodize
ColorClear
Drop Lock
Moment of Inertia – IX2.6758 cm⁴
Moment of Inertia – IY2.6758 cm⁴
Surface Area3.066 Sq. cm
Yield Strength241.1 N/ Sq mm
Modulus of Elasticity70,326.5 N / Sq mm
Weight lbs0.0460 per inch
Weight0.0460

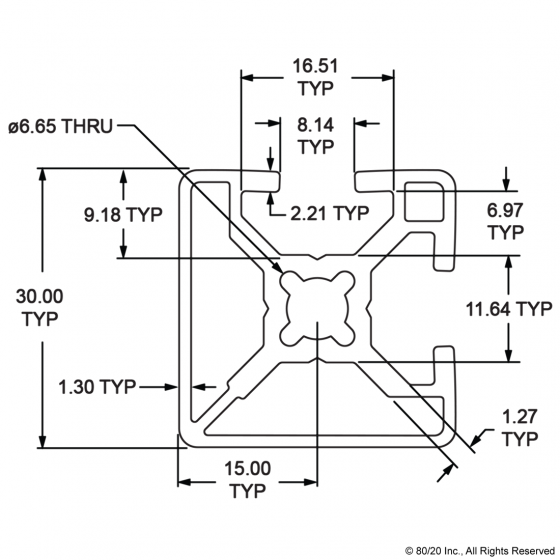

30-3002_dimensional
