Part No: 25-2503

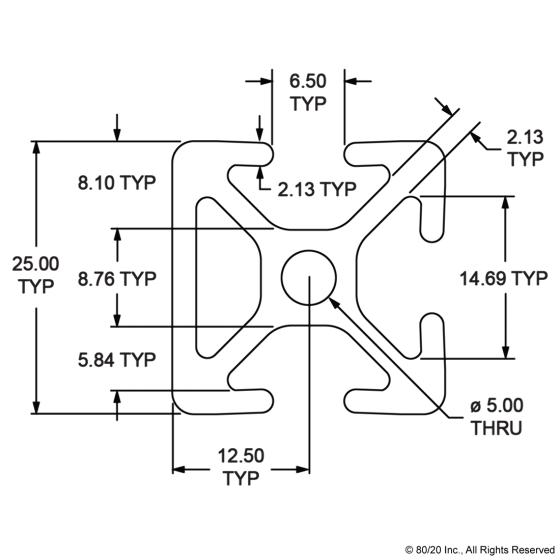

25mm X 25mm T-Slotted Profile – Three Adjacent Open T-Slots
25-2503 is a 25mm x 25mm metric 25 series square T-slot profile with three adjacent open T-slots, one on three 25mm faces. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 25-2503 profile is compatible with 25 series fasteners. The closed face on this profile provide a clean, aesthetic look while also having the capability to mount additional profiles, parts and accessories.
Additional information
| Series | 25 Series |
| Material | Aluminum |
| Grade | 6105-T5 |
| Finish | Anodize |
| Color | Clear |
| Drop Lock | 2° |
| Moment of Inertia – IX | 1.775 cm⁴ |
| Moment of Inertia – IY | 1.956 cm⁴ |
| Surface Area | 2.892 Sq cm |
| Yield Strength | 241.1 N/ Sq. mm |
| Modulus of Elasticity | 70,326.5 N/Sq. mm |
| Weight lbs | 0.0437 per inch |
| Weight | 0.0437 |
25-2503 is a 25mm x 25mm metric 25 series square T-slot profile with three adjacent open T-slots, one on three 25mm faces. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 25-2503 profile is compatible with 25 series fasteners. The closed face on this profile provide a clean, aesthetic look while also having the capability to mount additional profiles, parts and accessories.
