25 Series 4 Hole – Wide Slotted Inside Corner Bracket

25 Series 4 Hole – Wide Slotted Inside Corner Bracket

Part no. 25-4260

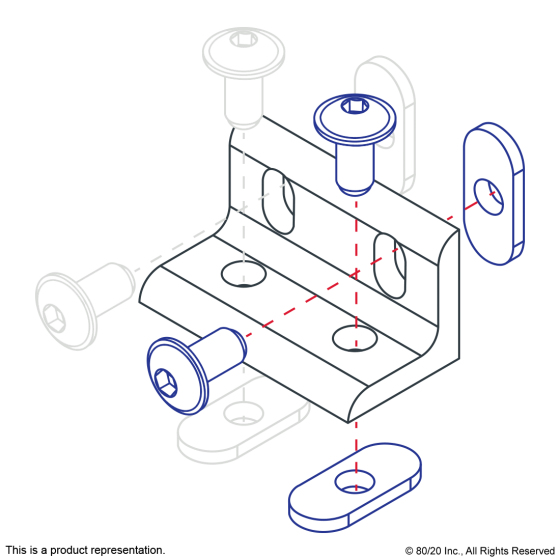

The 4 hole – wide slotted inside corner bracket is an external fastening method that creates a 90 degree connection. There are two adjacent holes on each side of the bracket. Two of the adjacent holes are slotted, allowing for a larger degree of adjustability between connecting profiles. This bracket requires no machining services and can provide infinite positioning along the profile T-slot; it also engages the 2-degree drop-lock feature when the assembly bolts are tightened to the required torque. It is a fastening method that can be repositioned and reused. The suggested mounting hardware can be found on the “Suggested Hardware” tab.

Series25 Series
MaterialAluminum
Grade6105-T5
FinishAnodize
ColorClear
A25.00mm
B25.00mm
C4.00mm
D12.50mm
E11.00mm
F6.80mm
G4.00mm
H25.00mm
J47.00mm
K6.80mm
Weight0.0440

25-4260_dimensional
