15 & 40 Series 2 Hole – Inside Corner Bracket with Single Support

15 & 40 Series 2 Hole – Inside Corner Bracket with Single Support

Part no. 14120

The 2 hole – inside corner bracket with single support is an external fastening method that creates a 90 degree connection. The single support provides additional strength while the slotted mounting holes allow for greater adjustability between the connecting profiles. This bracket requires no machining services and can provide infinite positioning along the profile T-slot. The suggested mounting hardware can be found on the “Suggested Hardware” tab.

SKU: 14120 Categories: ,
Series15 Series, 40 Series
MaterialSteel
FinishZinc
A43.00mm
B43.00mm
C3.00mm
D17.50mm
E15.00mm
F6.00mm
G30.00mm
H9.00mm
J13.00mm
K17.50mm
L17.50mm
Weight0.579000

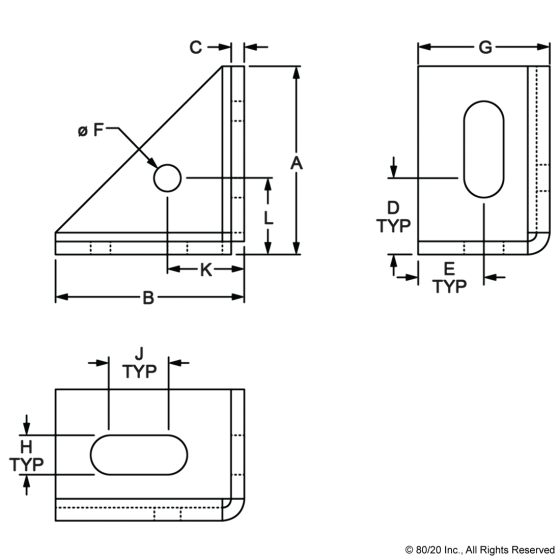

14120_dimensional
