Part No: 1515-UL

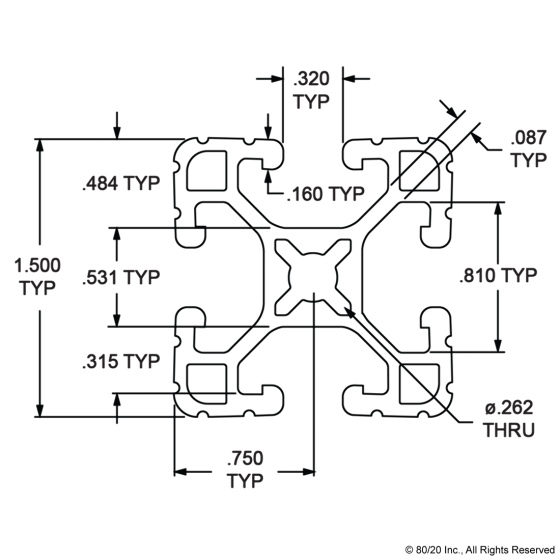

1.50″ X 1.50″ Ultra-LiteT-Slotted Profile – Four Open T-Slots
1515-UL is a 1.50″ x 1.50″ ultra-lite fractional 15 series square T-slot profile with four open T-slots, one on each 1.50″ face. The profile has align-a-grooves to assist in alignment when connecting profiles. The 1515-UL profile is compatible with all 15 series fasteners. The 1515-UL profile is the lightest in the 1515 profile family and lends itself to machine guards, sound enclosures, work benches, panel mount racks or displays. The four open T-slots enable access from any direction and are useful for mounting accessories.
Additional information
| Series | 15 Series |
| Material | Aluminum |
| Grade | 6105-T5 |
| Finish | Anodize |
| Color | Clear |
| Drop Lock | 2° |
| Moment of Inertia – IX | 0.1772″⁴ |
| Moment of Inertia – IY | 0.1772″⁴ |
| Surface Area | 0.787 Sq. In. |
| Yield Strength | 35,000 psi. |
| Modulus of Elasticity | 10,200,000 Lbs / Sq. In. |
| Weight lbs | 0.0768 |
| Weight | 0.0768 |
1515-UL is a 1.50″ x 1.50″ ultra-lite fractional 15 series square T-slot profile with four open T-slots, one on each 1.50″ face. The profile has align-a-grooves to assist in alignment when connecting profiles. The 1515-UL profile is compatible with all 15 series fasteners. The 1515-UL profile is the lightest in the 1515 profile family and lends itself to machine guards, sound enclosures, work benches, panel mount racks or displays. The four open T-slots enable access from any direction and are useful for mounting accessories.
